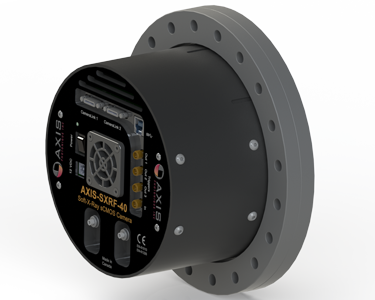

AXIS-SXRF-40: Large Area Soft X-ray sCMOS camera on a Flange
We are proud to present AXIS-SXRF-40, is a large-area soft x-ray sCMOS camera for measurements from 20 eV to 2 keV. It is based on a new 37mm x 37mm backside illuminated scientific CMOS (BSI-sCMOS) which is able to acquire low noise 16 Mpix images with a frame rate up to 16 Hz through its CameraLink interface.
We now offer a choice of 2 different sensors to suit your needs.
The mechanics have been designed to allow the user to easily change the detector in case of an experiment mishap or if the experiment requires another type of sensor.
Camera comes with an application, standard drivers and plugins that can be used with commonly used applications (SamplePro, MicroManager, Labview, etc). An SDK for Windows and Linux is also available.
Applications:
DETECTOR SPECIFICATIONS :
| Available Sensors |
STANDARD GSENSE4040 BSI |
EUV-Enhanced GSENSE4040 BSI |
| Pixel | 4096 x 4096 (9 µm) | |
| Size | 36.9 mm x 36.9 mm | |
| Frame Rate | 16 fps (CameraLink) 9 fps (USB3.0) |
|
| Exposure Time | 10 µs – 300 s | |
| Digital Encoder | 16-bit (High Dynamic Range); 12-bit (High Gain/Low Gain) | |
| Full Well Capacity | 39 ke- (Low Gain mode), 34 ke- (HDR mode), 1.3 ke- (High Gain mode) | |
| Readout Noise (rms) | 25 e- (Low Gain mode), 3.3 e- (HDR Mode), 2.6 e- (High Gain Mode) | |
| Dark Current | <0.1 e-/p/s (@ -20 °C) | |
| Typical QE |
|
 |
MECHANICAL SPECIFICATIONS
| Flange Type: |
DN160CF (Standard) |
| Sensor Position: | Same plane as the surface of the flange |
| Dimensions: |
Body diameter: 15.1 cm (6.0 in) Length : 10.5 cm |
| Weight | 5 kg |
| Vacuum compatibility | 5 x 10-7 mbar |
 |
|
|---|
Standard Accessories
Available Options
Disclaimer
Axis Photonique reserves the right to modify product specifications without notice.
